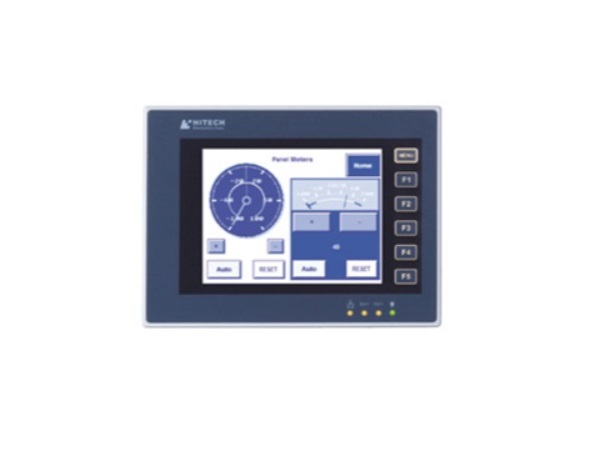

PWS6600S-S

Beijer Electronics HITECH  HMI  Model PWS6600S-S

Display

Size diagonal      5.7" diagonal

Resolution           320x240 pixels

Backlight             LED Backlight

Backlight life time            30000 hours

Backlight brightness        160 cd/m2

Backlight dimming           None

Display type        Mono STN LCD

Communication serial

Number of serial ports   1 Port 9pin DSUB/1 Port 25 pin DSUB

Serial port 1       RS232/RS485

Serial port 2       RS 232/RS422/Rs485

Mechanical

Mechanical size 195.0 x 145.0 x 59.1 mm

1million finger touch operations

Touch type          Resistive

Cut-out size        185.8 x 135.8 mm

Weight  1.17 kg

Housing material              Plastic, Gray

Power

Input voltage     24V DC ± 15%

Power consumption (max)           24VDC, 20W

Input fuse           Internal DC fuse
