PWS5A00T-P

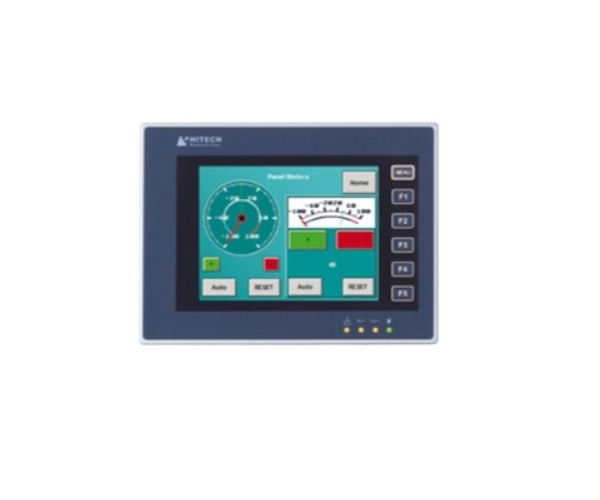

Beijer Electronics HITECH  HMI  Model PWS5A00T-P

Display

Size diagonal      10.1" diagonal

Resolution           800x480 pixels

Backlight             LED Backlight

Backlight life time            20000 hours

Backlight brightness        300 cd/m2

Backlight dimming           None

Display type        Color TFT LCD

Communication serial

Number of serial ports   2 Port 9pin DSUB/1 Port 25pin DSUB

Serial port 1       RS232/RS485

Serial port 2       RS 232/RS422/Rs485

Serial port 3       RS422/485

Mechanical

Mechanical size 297.0 x 222.0 x 52.3 mm

Number of touches         1million finger touch operations.

Touch type          Resistive

Cut-out size        286.0 x 211.0 mm

Weight  2.38 kg

Housing material              Plastic, Gray

Power

Input voltage     24V DC ± 15%

Power consumption (max)           24VDC, 30W

Input fuse           Internal DC fuse
