PWS6A00T-N

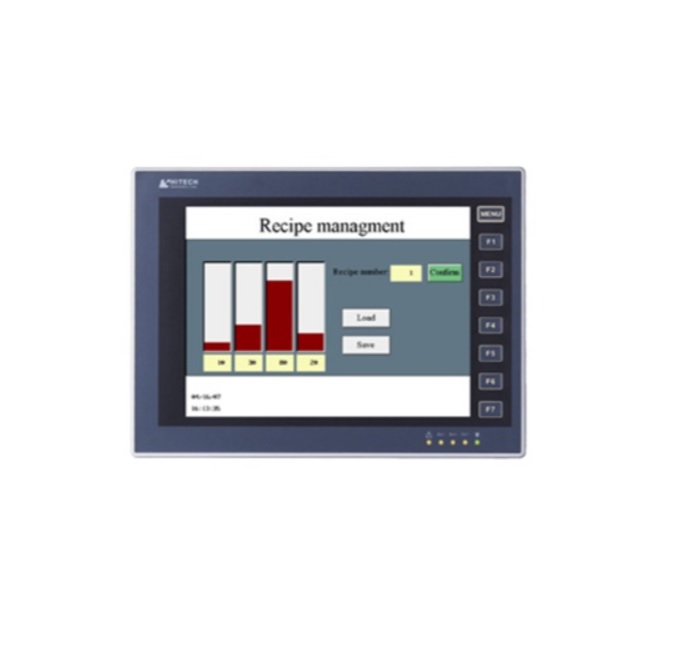

Beijer Electronics HITECH  HMI  Model  PWS6A00T-N

Display

Size diagonal      10.4" diagonal

Resolution           640x480 pixels

Backlight             LED Backlight

Backlight life time            50000 hours

Backlight brightness        450 cd/m2

Backlight dimming           None

Display type        Color TFT LCD

Communication serial

Number of serial ports   2 Port 9pin DSUB/1 Port 25pin DSUB

Serial port 1       RS232/RS485

Serial port 2       RS 232/RS422/Rs485

Serial port 3       RS422/485

Ethernet communication

Number of Ethernet ports            1

Expansion interface

SD card CF

USB        2 USB Host, 1 USB Device

Environmental

Operating temperature  -10°C to +60°C

Storage temperature       0°C to +50°C

Shock    10 G, 11 ms 3 times in each direction of X-, Y- and Zaxes

Vibration             0.5 mm displacement, 10-55 Hz, 2 hours per X-, Yand Z-axis directions

Sealing front       IP65

Humidity              10~90% RH(0 °C~40 °C),10~60% RH(41 °C~50 °C),noncondensed.
