F3SP-B1P

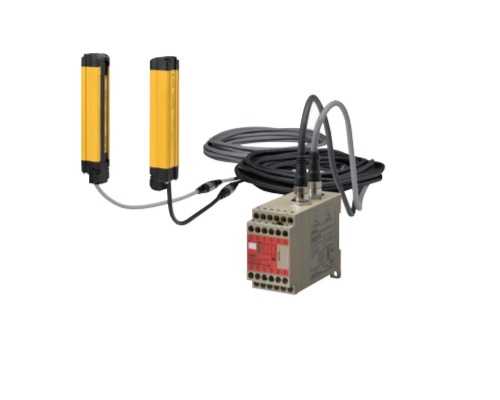

Omron Safety Relay Model : F3SP-B1P

Input : Rated power consumption  : 24 VDC

            Operating voltage range:  -15% to +10% of rated supply voltage

            Rated supply voltage :  1.7 W max. (Exclude sensor power)

Output : UL Listed : Rated load : 250 VAC 5 A cosφ=1 ,30 VDC 5A L/R=0

                                                          Rated carry current : 5 A

                                                          Max. switching voltage : 250 VAC 125 VDC

                                                          Max. switching capacity AC: 1,250 VA, DC: 150 W

 Output : EU Directive : Rated load : 25 VAC 5 A cosφ=1,30 VDC 5 A L/R=0 ms

                                                                  Rated carry current  : 5 A

                                                                  Max. switching voltage : 25 VAC 60 VDC

                                                                  Max. switching capacity:  AC: 125 VA ,DC: 150 W

                                                                  Conditional short-circuit current : 1,000 A

                                                                  Short circuit protective device : Use 5 A fast acting fuse in accordance with IEC 60127
