G9SE-221-T_

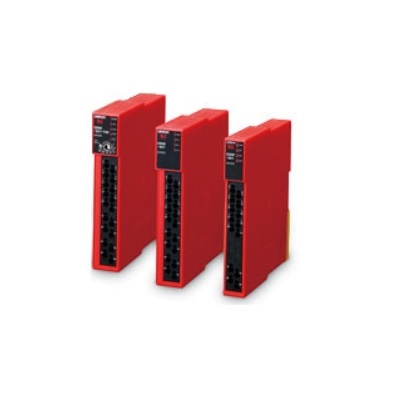

Omron Safety Relay Model : G9SE-221-T_

Ratings Power Input

Rated supply voltage : 24 VDC

Operating voltage range : -15% to 10% of rated supply voltage

Rated power consumption *1 : 4 W max.

Outputs

Safety output OFF-delayed Safety output : Contact output  250 VAC 5 A 30 VDC 5 A (resistive load)

Auxiliary output  : PNP transistor output Load current: 100 mA DC max

Characteristics

Operating time (OFF to ON state) *2 : 100 ms Max. *3

Response time (ON to OFF state) *4 : 15 ms Max.

Accuracy of OFF-delay time : Within plus or minus 10% of the set value
