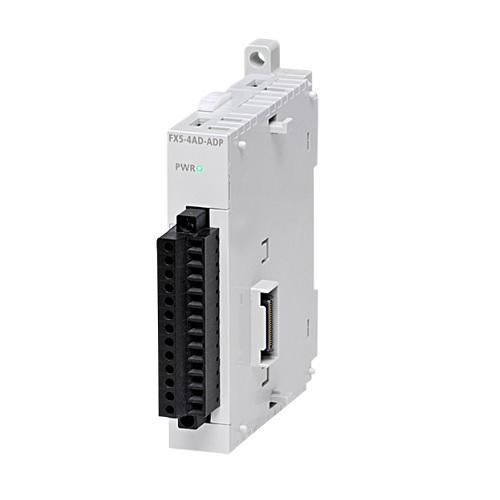

FX5-4AD-ADP

FX5-4AD-ADP

Analog input devices (A/D conversion)

Number of channels : 4 ch

Input range : -10 to +10 V DC (Input resistance 1 MΩ)    ,

Input range :-20 to +20 mA DC (Input resistance 250 Ω)

Input characteristics,resolution

Analog Input range : 10 to 10 V      Resolution : 625 μV

Analog  Input range : 0 to 20 mA   Resolution : 1.25 μA

Analog Input range :    0 to 5 V      Resolution : 312.5 μV

Analog  Input range :   4 to 20 mA     Resolution : 1.25 μA

Analog Input range :    1 to 5 V     Resolution : 312.5 μV

Analog  Input range :  -20 to 20 mA      Resolution : 2.5 μA

Analog Input range :  -10 to 10 V     Resolution : 1250 μV

Analog  Input range :   -20 to 20 mA   Resolution : 2.5 μA

Compatible CPU module :FX5U Max. 4 units , FX5UC Max. 4 units , FX5UJ Max. 2 units
